Important Buildings And Businesses Are Always Seen In The Right Light — With New Omegalux Outdoor Linear LED Luminaires From Orgatech
New Product Introduction: Omegalux Outdoor Linear LED — architectural design, specification-grade, highly energy saving, ultra longlife; outdoor wall-wash luminaires for large, prestigious exterior commercial, industrial, municipal spaces.
Design: Orgatech In-House Lighting Design and Engineering Team.
Manufacturer: Orgatech, a U.S. company.

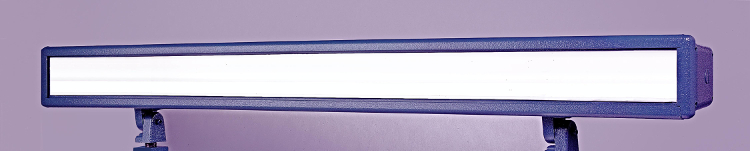

Product Applications: Omegalux Outdoor Linear LED luminaires comprise a family of compact low-profile, above-ground, wall- or surface-mounted outdoor luminaires. They provide high-performance, high operating economy, long-life white illumination year round.
Omegalux Outdoor Linear LED luminaires provide a broad range of very energy-saving long-life choices for outdoor architectural flood, accent and wall-wash lighting. Ideal around building entryways, facades, parks and gardens; natural and manmade landscape features; pedestrian walkways, recreational areas and the like. A low-profile footprint design, 4.5-inches high x 3.75-inches deep, allows Omegalux Outdoor Linear LED to be easily concealed behind architectural features. Light is focused forward and upward, providing direct asymmetric or flood distribution for exterior walls, building facades or vertical support columns.
Product Description: Omegalux Outdoor Linear LED luminaires consist of a linear architectural single-piece design; curved-edge visor housings with large, visible reflectors. Omegalux Outdoor Linear LED can be adapted to meet most any application using louvers, colored lens filters, and special mounting hardware.
Construction & Finishes: Omegalux Outdoor Linear LED luminaires incorporate extruded-housings of sturdy 60% recycled aluminum employing integral line-voltage power. Bull-nose edges are permanently fixed on three sides, ensure that the slide-in lens seals perfectly. Mounting options comprise adjustable sliding brackets; unbreakable wire-through cast swivels with locking teeth; perma-posts for ground mounting; and rotating hub brackets. All hardware is stainless steel. Special brackets available to customer specification.
A low-profile footprint design, 4.5-inches high x 3.75-inches deep, allows Omegalux Outdoor Linear LED to be easily concealed behind architectural features. Light is focused forward and upward, providing direct asymmetric or flood distribution for exterior walls, building facades or vertical support columns. Omegalux Outdoor Linear LED is available in individual lengths from 1- to 8-feet. Row lengths incorporate 4- or 8-foot fixtures to form 12-, 16-, 20- and 24-feet luminaires.
Choice of five LED outputs may be specified to application preference:
- Standard Output — 5 watts, 618 lumens per foot;
- High Output — 7.5 watts, 870 lumens per foot;
- Extra-High Output — 9 watts, 1004 lumens per foot.
- Greater High Output — 12 watts, 1250 lumens per foot.
- X-Extra High Output — 16 watts, 1700 lumens per foot.
A 5-year, 60,000-hour factory warranty is standard. Units yield 40% or greater energy savings over common linear fluorescent fixtures;
A 5-step factory pretreatment prepares Omegalux Outdoor Linear LED housings for long-life polyester powdercoat application. Standard color options include: Black, Bronze, Silver or White. Custom colors available at an up-charge.
Omegalux Outdoor Linear LED is ETL and CSA listed for wet locations. Dimming capability and Emergency Battery Backup options available.
Contact Information: Learn more about Orgatech architectural high-performance design-lighting products and capabilities by visiting: www.orgatechomegalux.com. Orgatech is located at 511 N. Virginia Avenue, Azusa, CA 91702. Telephone: (626) 969-6820. Fax: (626) 669-6830. E-mail: firstname.lastname@example.org.
